H-VRF Pipe Connection Kits

KIT 12 - Expansion Vessel Kit

Multitubo

  • SKU #:HVRF

Description



RefProduct CodeDescriptionDetailsQty Per Kit
12.1 FAR3422 22mm CU to 3/4" HBC Box Connection.  1
12.2 BXCKHT Isolation Valve 3/4" Straight

Straight 3/4" isolation valve for HBC Box and fan coil end isolation.

1
12.3 MT2534FT MT 25 x 3/4" FT For connection onto isolation valves at HBC Box end of pipe run. 1
12.4 MT2512FT25 MT 25 x 1 1/2" FT x 25

For the addition of drain and vent points in the pipe work.

1
12.5 DRAINTAP15 Drain/Fill Tap 15mm

To be installed at the low point for draining pipe work.

1
12.6 MT2534MT MT 25 x 3/4" MT For connection onto isolation valves at terminal unit end of pipe run. 1
12.7 HMHFH20400 Flexible Hose StSt 20 x 400mm

For connection onto expansion vessel (other lengths on request).

1
12.8 EV5L Expansion Vessel Pot 5L Non-potable expansion vessel to main correct system pressure at normal operating conditions.  1
12.8 EV8L Expansion Vessel Pot 8L

Non-potable expansion vessel to main correct system pressure at normal operating conditions.

1
12.8 EV12L Expansion Vessel Pot 12L

Non-potable expansion vessel to main correct system pressure at normal operating conditions.

1
12.8 EV18L Expansion Vessel Pot 18L

Non-potable expansion vessel to main correct system pressure at normal operating conditions.

1
12.8 EV24L Expansion Vessel Pot 24L Non-potable expansion vessel to main correct system pressure at normal operating conditions.  1
12.8 EV50L Expansion Vessel Pot 50L

Non-potable expansion vessel to main correct system pressure at normal operating conditions.

1
12.9 EVB Expansion Vessel Bracket

For mounting of expansion vessel.

1

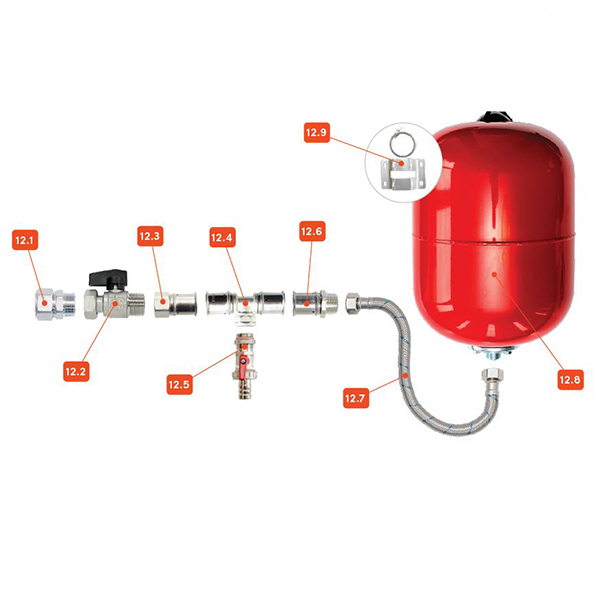

KIT 12 - Expansion Vessel Kit image
